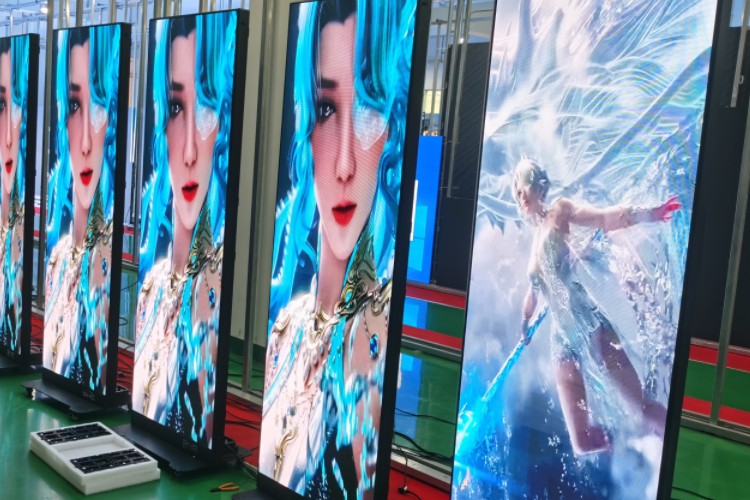

Indoor Freestanding LED Poster Screen
Pixel Pitch: P1.86 (Options: P1.25,1.538)
| LED Poster Screen Cabinet Parameters |
| Type | P1.25 | P1.538 | P1.86 |
| Pitch | 1.25 | 1.538 | 1.86 |
| Cabinet Type | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Access / Maintenance | Front Maintenance | Front Maintenance | Front Maintenance |
| LED Model & Type | 1010 | 1212 | 1515 |
| LED Make | Rayshine | Rayshine | Rayshine |
| Driving IC Model Make | DP3364S | DP3364S | FM6373 |
| Refresh | 3840Hz | 3840Hz | 3840Hz |
| Brightness | 600-800nits | 600-800nits | 600-800nits |
| Contrast | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° |
| Control System | NovaStar | NovaStar | NovaStar |
| Power Supply & Model | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy |
| Max Wattage (Watts) | 160 | 145 | 130 |
| Avg Wattage (Watts) | 60 | 58 | 50 |
| Power Supply per Cabinet | 1 | 1 | 1 |
| Reciever Card Per Cabinet | 1 | 1 | 1 |
Reciever Card Model
(Non HDR) | MRV532 | MRV412-N | MRV412-N |
| Scan | 64 | 52 | 43 |
| Density（dot/m²） | 640000 | 422500 | 288906 |
| Module Pixels (L*H) | 256*128 | 208*104 | 172*86 |
| Module Size (L*H)mm | 320*160mm | 320*160mm | 320*160mm |
| Cabinet Resolution (dot) | 196608 | 129792 | 88752 |
| Cabinet Size (L*H)mm | 640*480mm | 640*480mm | 640*480mm |
| Cabinet Depth (mm) | 60 | 60 | 60 |
| Single Cabinet weight (kg) | 9KG | 9KG | 9KG |
| Max Power (watts / m2) | 520 | 472 | 423 |
| Avg Power (watts/m2) | 195 | 189 | 163 |
| Weight (kg/m2) | 29 | 29 | 29 |
| Certification | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS |
| Ingress Protection (IP) | IP30 | IP30 | IP30 |
| Grayscale | 14bit | 14bit | 14bit |
Technical Advantages & Application Scope of LED Poster Screens
1. Core Technical Advantages
1.Ultra-thin & Ultra-light Integrated BodyIntegrated cabinet, power supply and control system in one unit. Slim and lightweight for easy carrying by a single person, with no complicated steel frame required.
2.Freestanding Design with Zero Installation
Comes with vertical base for direct floor placement after unpacking. No wall drilling or wall-mount construction needed, ready for use within minutes.
3.High-definition & Delicate Display
Adopts fine-pitch LED chips with high color saturation and contrast. Clear images without graininess even for close viewing.
4.All-in-one Intelligent Control System
Built-in Android system, supporting image/video transfer via WiFi, Bluetooth and USB flash drive. Remotely release posters and videos with one click via mobile phones or PCs, and set scheduled playback switching.
5.Energy-saving & Stable Heat Dissipation
Equipped with silent cooling structure featuring low power consumption during standby and playback. No overheating during long-hour operation, much lower electricity cost than traditional light boxes.
6.Front & Rear Dual-side Easy Maintenance
Modules replaceable from front; power supply and control card accessible from rear. No complete screen disassembly needed for faults, efficient after-sales service.
7.Dustproof Design for Indoor Commercial Use
Sealed dust-proof panel; certain commercial versions feature mild moisture resistance, suitable for crowded shopping malls and preventing dust-induced lamp failure.
8.Portable & Reusable
Easy to transport and reusable across multiple stores and event venues. One-time purchase for long-term circulation to cut advertising investment costs.
9.Automatic Brightness Adjustment with Light Sensor
Built-in light sensor adjusts screen brightness according to ambient light automatically, avoiding glare in bright areas and dim blur in dark surroundings to extend service life.
10.Minimalist & Versatile Appearance
Narrow-bezel vertical design with elegant look, matching all commercial decoration styles and upgrading store image.
2. Application Scope
1.Physical retail stores: milk tea shops, clothing stores, cosmetics shops, restaurants, convenience stores for entrance promotion2.Shopping malls & retail: supermarket counters, new product promotion, discount notice display
2.Hotel & catering industry: hotel lobby welcome posters, dish promotion for restaurants
3.Exhibitions & events: temporary exhibitions, roadshows, press conferences with quick setup and relocation
4.Bank branches: financial product promotion and business process notice
5.Office buildings & enterprises: corporate culture display, product introduction and announcement at reception desks
6.Educational institutions: enrollment promotion, course information and activity notification
7.Medical beauty studios & gyms: service package advertisement and business hour display
LED poster screens packed in flight cases for easy transportation and storage
