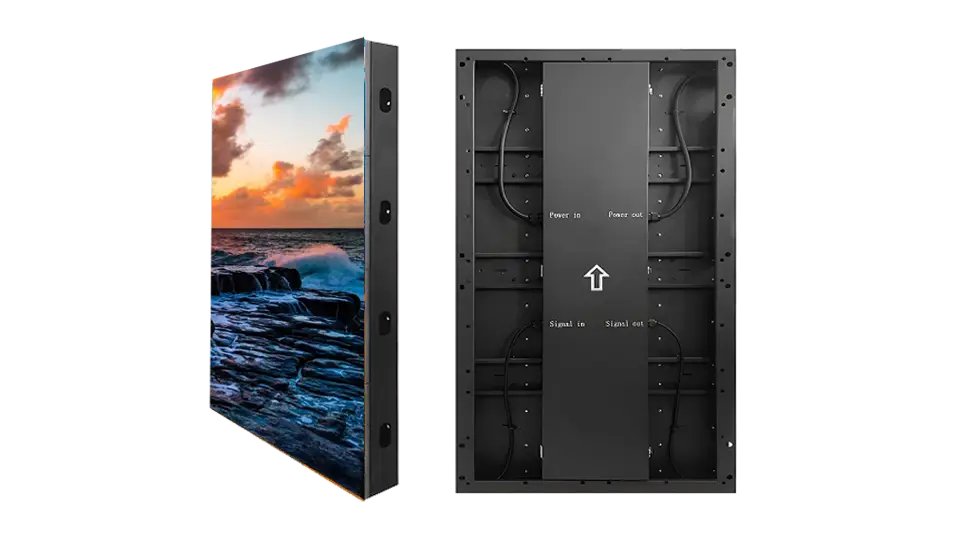

LED floor tile screens are primarily installed on the ground, hence the name. To stand out, these screens typically feature interactive capabilities, with configurations tailored to specific application scenarios.
| LED Floor Screen Series |
| LED Floor Screen | Pixel Pitch | Resolution
(dot/m²) | Pixel Density | Module size
mm | Cabinet size
mm | Refresh Rate | Scan | Max Wattage (W/cabinet) | Avg W/attage (W/cabinet) | Lamp Bead | Brightness | IP Rate | Cabinet Bearing | Cabinet Thickness | Single Cabinet Weight | Working Voltage |
| P2.976 | 112896 | 336*168 | 250*250 | 1000*500 | 3840Hz | 1 / 42s | 200 | 60 | SMD1415 | 900-2000cd Adjustable | IP54 | 2000
KG/m² | 80mm | 22.5KG | 100-240V ，AC 50-60Hz |
| P3.91 | 65536 | 256*128 | 250*250 | 1000*500 | 3840Hz | 1 / 32s
or
1/16s | 180 | 55 | SMD1415 | 900-2000cd Adjustable | IP54 | 2000
KG/m² | 80mm | 22.5KG | 100-240V ，AC 50-60Hz |
| P4.81 | 43264 | 208*104 | 250*250 | 1000*500 | 3840Hz | 1 / 26s | 160 | 48 | SMD1921 | 900-2000cd Adjustable | IP54 | 2000
KG/m² | 80mm | 22.5KG | 100-240V ，AC 50-60Hz |
| Key Technical Characteristics | 1. ≥2 ton/m² high load-bearing.
2. IP54 High Protection. Covered with a slip-resistant and wear-resistant acrylic transparent cover plate.
3. ≥ 3840Hz High Refresh Rate & 900-2000cd Adjustable High Brightness.
4. Built-in sensing chip enables human-machine smart interaction.
5. 500*1000mm Modular Rapid Installation.
6. Surface flatness error < 0.5mm for safe walking, and seamless visuals.
7. Built-in efficient active cooling system for heat dissipation. |
| Scenario | 1. Retail and Brand Experience : Luxury stores, flagship store entrances, auto showrooms.
2. Events and stage performances : Concert stages, fashion show runways, award ceremonies.
3. Hotels and entertainment venues : Nightclub dance floors, hotel lobbies, themed bars.
4. Sports and Public Activities : Sports event entry tunnels, podium areas, city celebration squares.
5. Exhibition and Tourism Culture : Museums, science centers, theme park immersive walkways. |
In tourist attractions, LED floor tiles can create thrilling visual effects—imagine the shock of walking on 'shattered glass'! In amusement parks, they offer playful interactions like 'stepping on fish.' Using radar sensors for motion detection, these screens respond instantly to human movement, turning any space into a lively and immersive experience.
