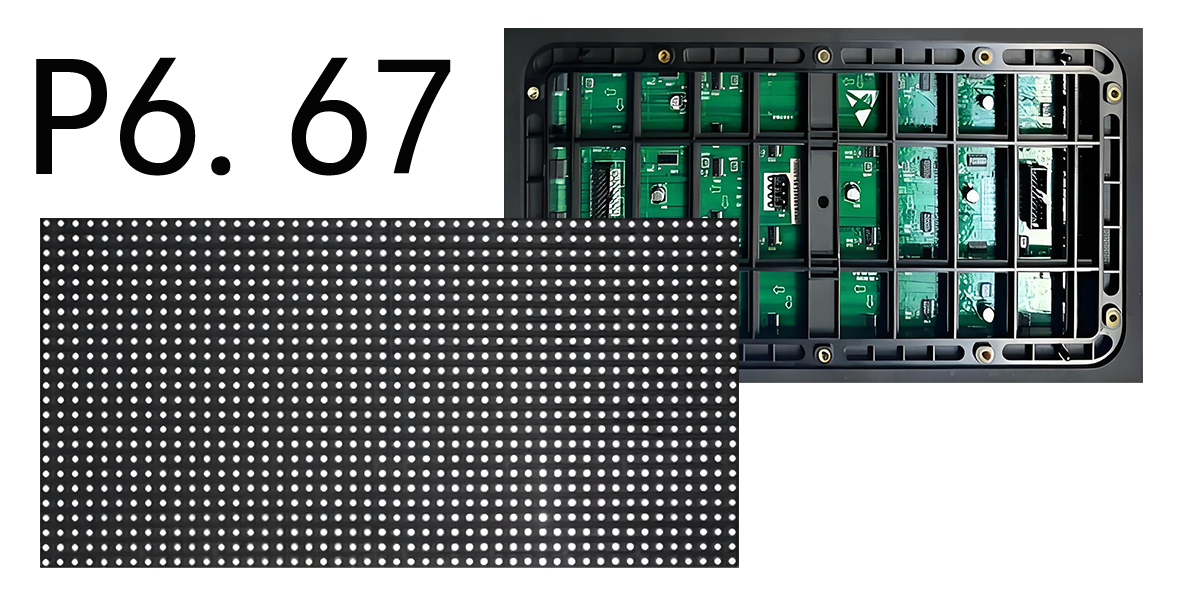

Outdoor P6.67 LED Screen Module

Outdoor P6.67 LED Screen Module

选择规格数量

P6.67

6.67mm

select Specifications



  • Product Detail

Technical Specifications and Product Images of Outdoor P6.67 LED Display Module with Standard Iron Cabinet


SMD 960*960mm Outdoor Iron Cabinet Series
TypeP6.67
 Pitch 6.67
Series960*960mm Series
Cabinet TypeOutdoor Standard Waterproof Cabinet
Access / MaintenanceRear Maintenance
LED Model & Type2727
LED MakeRayshine
Driving IC Model MakeDP3364S
 Refresh 3840Hz
Brightness4000-8000nits
Contrast5000:1
Viewing AngleH 160°,V 160°
Control SystemNovaStar
Power Supply & Model5V/60A, G_energy
Max Wattage (Watts)750
Avg Wattage (Watts)250
Power Supply per Cabinet3
Reciever Card Per Cabinet1
Reciever Card Model
(Non HDR)
MRV208-N
Hub Card Per Cabinet/
Scan6
Density(dot/m²)22500
Module Pixels (L*H)48*24
Module Size (L*H)mm320*160mm
Cabinet Resolution (dot)20736
Cabinet Size (L*H)mm960*960mm
Cabinet Depth (mm)137
Single Cabinet weight (kg)45KG
Max Power (watts / m²)800
Avg Power (watts/m²)240
Single Cabinet weight (kg)45
Certification3C CE ROHS
Ingress Protection (IP)IP65
Grayscale14-16bit+





























































Core Advantages of Outdoor LED Modules

1.High Brightness Visibility

Brightness ranges from 4000 to 8000 cd/㎡. Images remain clear without fading under direct midday sunlight, delivering outstanding advertising performance.


2.All-Weather Waterproof & Dustproof Performance

Standard IP65 protection, optional GOB glue coating technology. Rainproof, dustproof, moisture-proof and UV-resistant, stable under high and low temperatures.


3.Ultra-Wide Viewing Angle

Wide horizontal and vertical viewing angles. Uniform color performance for viewers from far away or side views, no dark or distorted colors.


4.Energy Saving & Excellent Heat Dissipation

Optimized circuit and heat dissipation structure reduce power consumption, cutting long-term electricity operation costs.


5.Long Service Lifespan

LED chips offer a 100,000-hour rated lifespan. The whole screen is durable with low maintenance frequency.


6.Modular Splicing Structure

Uniform module size allows flexible splicing into any custom dimension. Only single faulty modules need replacement for easy maintenance without disassembling the whole screen.


7.Vivid Color Reproduction

High grayscale and high refresh rate ensure smooth, vibrant videos and pictures to attract more customers.


Practical Application Scenarios

1.Commercial Facade Advertising: Large screens on shopping malls, hotels and office buildings for brand promotion.


2.Storefront Signage: Long outdoor screens for retail shops to broadcast discount campaigns.


3.Municipal Public Information: Public welfare notices, weather and traffic alerts on screens in urban squares and road overpasses.


4.Stadium Perimeter Screens: Ring-shaped outdoor displays around sports venues for live matches and commercial advertisements.


5.Transportation Hubs: Highway billboards, outdoor screens at bus stations, railway stations and airports.


6.Cultural & Tourist Attractions: Tour guide videos played on screens at scenic entrances and visitor centers.


7.Real Estate & Industrial Parks: Outdoor wall displays for property and corporate image promotion.


Outdoor LED display screens require cabinet assembly first, then all cabinets are spliced to form the complete screen. Wooden cases or wooden frames are adopted for packaging.


The display effect of fully assembled outdoor LED screens follows this rule: the smaller the pixel pitch, the shorter the optimal viewing distance; the larger the screen area, the farther the effective viewing distance.
